Xzh Verify Latest Cable Fault Locator Tdr Accurately Maps Fault Distance

Brand Name : XZH Test

Model Number : XHGG502A2

Certification : CE、ISO

Place of Origin : China

MOQ : 1unit

Payment Terms : T/T

Supply Ability : 5000unit/year

Delivery Time : 5-8work days

Packaging Details : wooden box

Contact Now

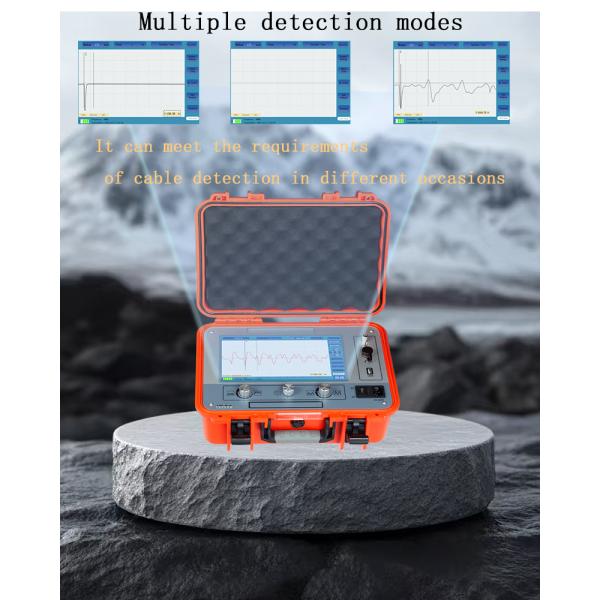

XHGG502A2 cable fault tester



Introduction



Featuring an industrial-grade 10.1-inch touch-integrated computer, the cable fault tester offers a simple operating software interface, industrial-grade integrated circuits and devices, and a built-in large-capacity lithium-ion battery, ensuring stability, reliability, and ease of use. This instrument is designed for measuring and analyzing the status and fault distance of power cables. It combines modern electronic and computer technologies to perform signal filtering, acquisition, data processing, graphic display, and graphic analysis, covering cable speed measurement, cable length test, and cable fault distance test.


Features


• 10.1-inch full-color TFT touch display;

• Embedded system, safe, stable and simple display and operation mode;

• With the function of testing cable wave speed, cable length and fault distance;

• Fully automatic continuous sampling, waveform capture at all times, timely and accurate.

• Equipped with automatic test range setting, automatic waveform analysis and display of test distance.

• Full English menu, two operation methods of touch and coded buttons, simple, fast and reliable.

• Equipped with testing technology of low-voltage pulse method, high-voltage flashover method, the waveform display is smooth and easy to interpret.


Technical indicators


Sampling frequency 80MHz
Low voltage pulse amplitude 100V±15%
Ranging range 65km
Test range 300m/1km/5km/25km/65km
Pulse width 0.125uS/0.50uS/2.50uS/7.25uS/10.0uS
Minimum resolution 0.1m
Test blind area 20m
Measurement error ≤±(0.5%×L+1m), L is the cable length
Power supply mode charging AC110V~240V, 50Hz/60Hz
Volume and weight L358mm×W284mm×H168mm-4.7kg
Working conditions Temperature -20ºC~+65ºC, relative humidity 90%, atmospheric pressure 750±30mmHg


Packing list
